Product Details

CCT-10-X & BOT-X306-NR & BOT-X306-NR & RZ-AN230

· Wireless means that there is a wireless connection between the thermostat and the hub.

WIFI means that the thermostat can be controlled by mobile phone.

Wireless is not equal to WIFI !!!!

· CCT-10-X can only work with BOT-X306-NR and BOT306RF-WIFI-NR these two wireless thermostats.

· The BOT-X306-NR and BOT306RF-WIFI -NR wireless thermostat in this link does not contain the receiver!

Product Introduction

CCT-10-X Wireless Hub Controllers is used in water underfloor heating system. It
can control zone valves, or boiler thermostats. As central control unit, it can also
control boiler and circulating pump.
According to user’s set temperature, hub controller can control to open or close
boiler, circulating pump and electric actuators, to achieve the purpose of comfort and
energy consumption saving.


* The CCT-10-X hub is connected to the NC actuator by default. If you need to connect the NO actuator, press and hold the debug button for 7 seconds to switch.

* Up to 8 pcs BOT-X306-NR and BOT306RF-WIFI-NR can be connected to one CCT-10-X.

* CCT-10-X and BOT-X306-NR are wireless products, not Wi-Fi products, they cannot be controlled by phones!
BOT306RF-WIFI-NR is WIFI product , it can be controlled by phones!


If you want to debug or check whether the hub controller is working properly, before power on, you can press and hold the debug key, then make controller powered. At this time, time delay function fails, so you can quickly check and debug your required function(debugging function will fail without operation for 20 minutes).

When controller is installed, you can pry 4 threading holes, and and go through power control wires from bottom. Controller can be installed by 2 self tapping screws fixed.

1. Wireless Hub Controller
2. Wireless Thermostat
3. Gas boiler
4. Circulating pump
5. Electric actuator

 Each output has a corresponding indicator light, clear and easy to find fault.
 Each hub controller can control up to eight thermostats and electric actuators.


Product Advantage

1 Easy to connect with power:
user only needs to reserve main supply in the place of manifold before installation, and directly connect one three-wires cable to
thermostats. So user do not need professional wiring workers;

2 Easy to connect wires: user only needs to connect wires according to wire colors;

3 Easy maintenance after installation: all wires are very clear and neat;

4 To protect boiler or pump:
because hub controller has time delay function, it opens boiler and pump only when water valve is totally opened, and closes
boiler when temperature reaches requirements. Time delay to open boiler and pump when heating can realize the purpose of

5 To extend boiler and pump life:
hub controller only start boiler and pump in appropriate temperature, in this way, it will reduce boiler and pump running time, to
extend their working life.

The difference between BOT-X306-NR and BOT306RF-WIFI

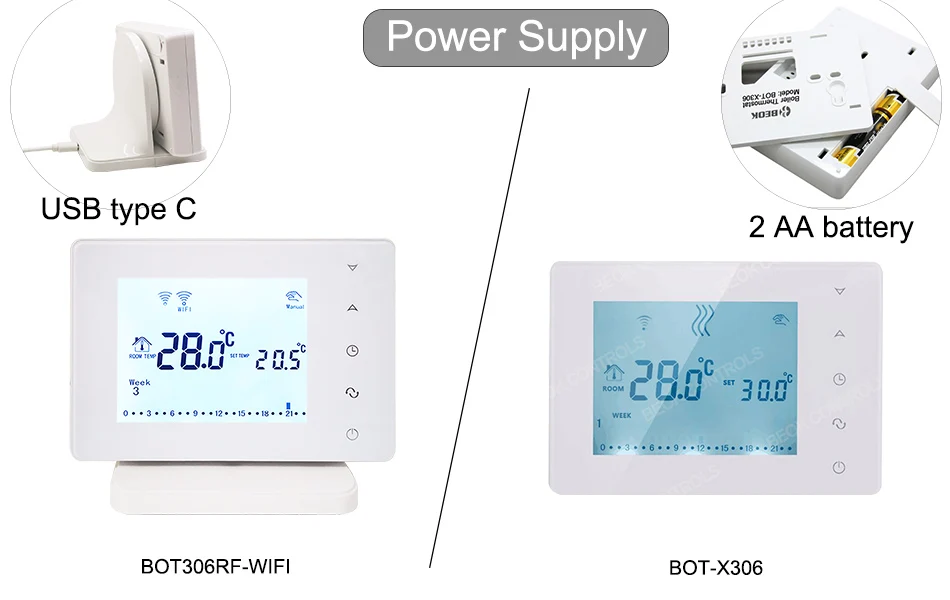

BOT306RF-WIFI-NR: With wireless and wifi function. Powered by USB type-C

BOT-X306-NR: With wireless function, no wifi function. Powered by AA battery


1. The controller of BOT306RF-WIFI-NR need to rely on the base and always connected to USB type C for power supply, can ‘t put into battery!!!

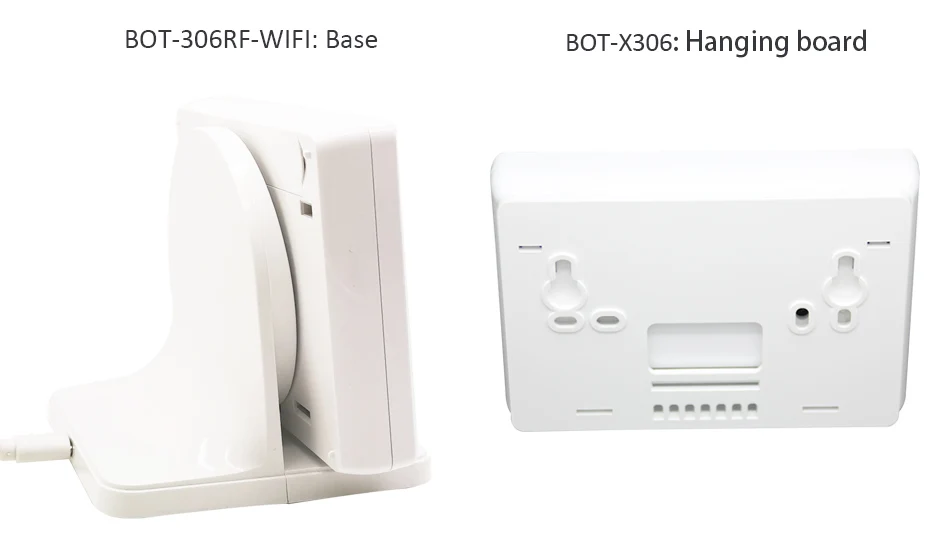

2. The controller of BOT306RF-WIFI-NR can only stand on the base, can’t be hung on the wall.

3. BOT306RF-WIFI-NR does not include a charging head, it need to use your own mobile phone charging head for power supply.

BOT-X306-NR and BOT306RF-WIFI-NR Function

– Wireless control, easy to place, 300 meters long control distance in open environment, 100 meters indoor.

– Big digital display, select themperature setting freely.

– High reliablity, energy-saving and powerful anti-jamming.

– 5+2/6+1/7 days week program function for chice.

– Manual mode and auto mode selectable.

– With child lock function, prevent children from accidentally touching.

– Anti-freeze function, prevent loss caused by low temperature.

– Power memory function, save the original settings after power off.


Package List

1 * Thermostat
1 * Wall Hunging Cover
1 * User Manual
2 * Screw.


Package List

1 * Thermostat
1 * Bracket
1 * USB line
1 * User Manual
2 * Screw.

230V Actuators

Technical Description

CCT-10-X Wireless hub controller:
Power Supply: 170-240VAC 5060HZ
Current Load: 3A
Size: 240mm X 110mm X 42mm
Working Temp: -20 – 60 celsius
Storage Temp: -20 – 70 celsius
Color: White

BOT-X306 wireless thermostat:
Working Voltage:1.5V X 2pcs AA battery
Output Power can be made 220V/110V
Current Load:3A
Temperature Control Accuracy:±0.5ºC
Setting Temperature Range: 5ºC-35ºC
Limiting Temperature Range:5ºC-99ºC
Temperature Sensor:NTC

Working Voltage: USB Type C
Output Power can be made 220V/110V
Current Load:3A
Temperature Control Accuracy:±0.5ºC
Setting Temperature Range: 5ºC-35ºC
Limiting Temperature Range:5ºC-99ºC
Temperature Sensor:NTC

RZ-AN230 Actuator
Model: RZ-AN 230-NO/NC
Working Voltage: 230VAC±10%
Initial Current: About 50MA
Power Consumption: 2W
Protection Grade: IP41
Working Journey: 3.5~3.6mm
Working Temperature: -20~50℃
Storage Temperature: -25~60 ℃
Security Class: II(Double Insulation)
Cable Length:65cm
Running Time:180seconds (open-closed)
CE Standard:EN60730
Size : M30*1.5

Manual Link:
