AUTOOL BT260 Car Circuit Tester Power Probe Auto Electric Voltage Electrical Component Test Meter Diagnostic Tool 12V 24V LED
AUTOOL BT260 electric circuit tester is suitable for diagnostic in all 6V to 30V vehicle electrical systems. With a simple hook-up of the tool to the vehicle’s battery, AC voltage detection, DC voltage detection, Resistance Detection, Diode Test, and Current overload protection will be available to test.

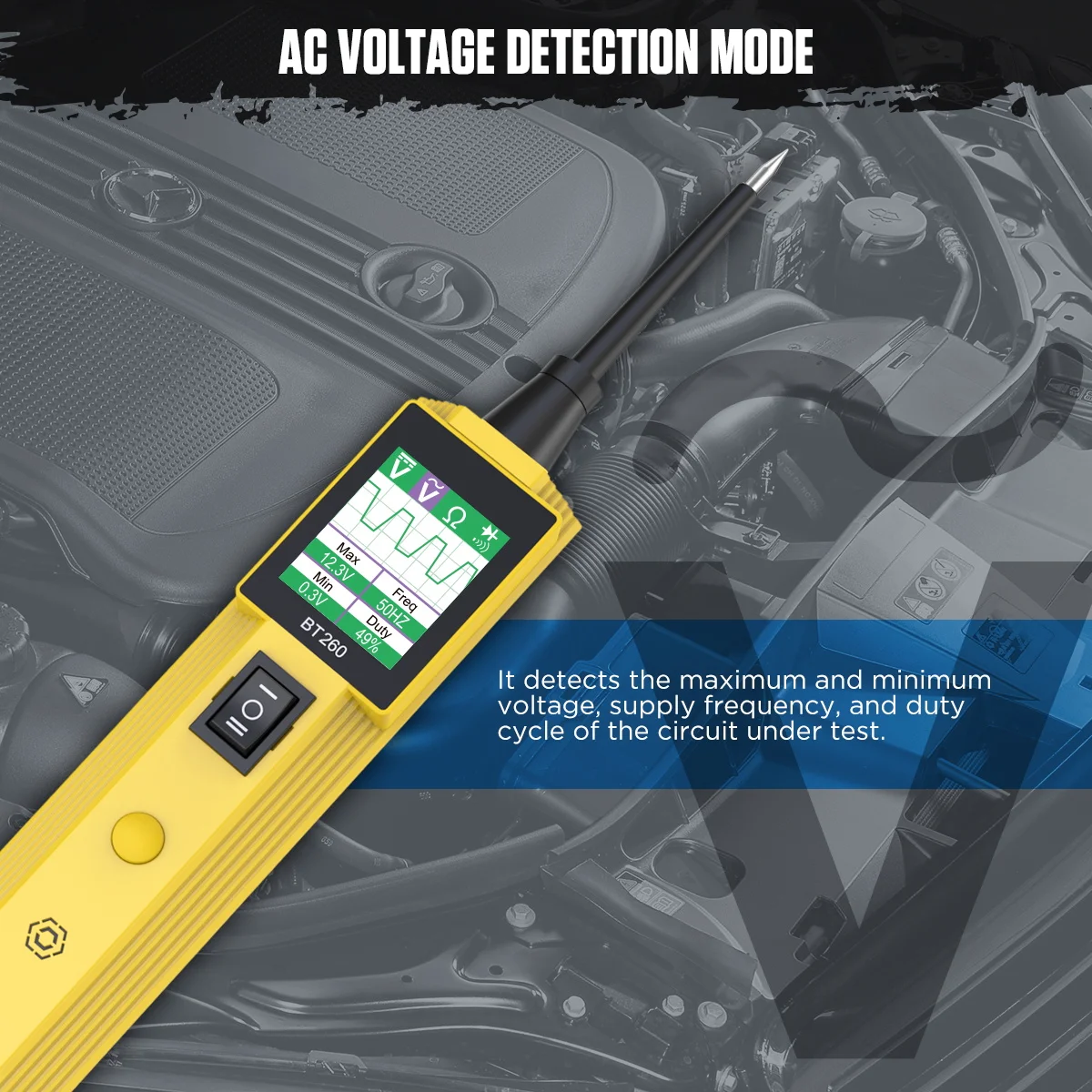

1.[AC & DC Voltage Detection Mode]:
AC detects the maximum and minimum voltage, supply frequency and duty cycle of the circuit under test. While DC volt. detection detects the voltage value of the circuit under test.
2.[Resistance Test & Diode Test Mode]:
It detects the resistance between the circuit probe under test and the auxiliary ground; While Diode Test can quickly test the operation of the diode assembly and determines if it is conducting.
3.[Ultra Extension Inspection Cable 10m ]:
Covering from the front to the rear of the vehicle, you can easily inspect the entire electrical circuit system.
4.[Current Overload Protection]:
When the current overload, AUTOOL BT260 Automotive Circuit Tester will automatically disconnect the protection circuit to reduce unnecessary losses.
Choose from 7 languages: English, German, Spanish, French, Italian, Polish, Russian.
For damages caused by non-human factors, AUTOOL promise to resend parts for free within 3 years. For any needs, you are warmly welcomed to contact us and we will get back to you ASAP within 24 hours.
How to change language?
a: Press the function key(a yellow button on body of BT260) 3 times to visit loudspeaker icon b: Then press and hold upward button,meanwhile press function key 5 times to visit “Language” menu c: Press funtion key to choose the language you’d like to,then press and hold the key last 3 seconds, the language setting is done d: Press the function key 1 time and go back to main menu
Parameter Details of AUTOOL BT260 Automotive Circuit Tester:

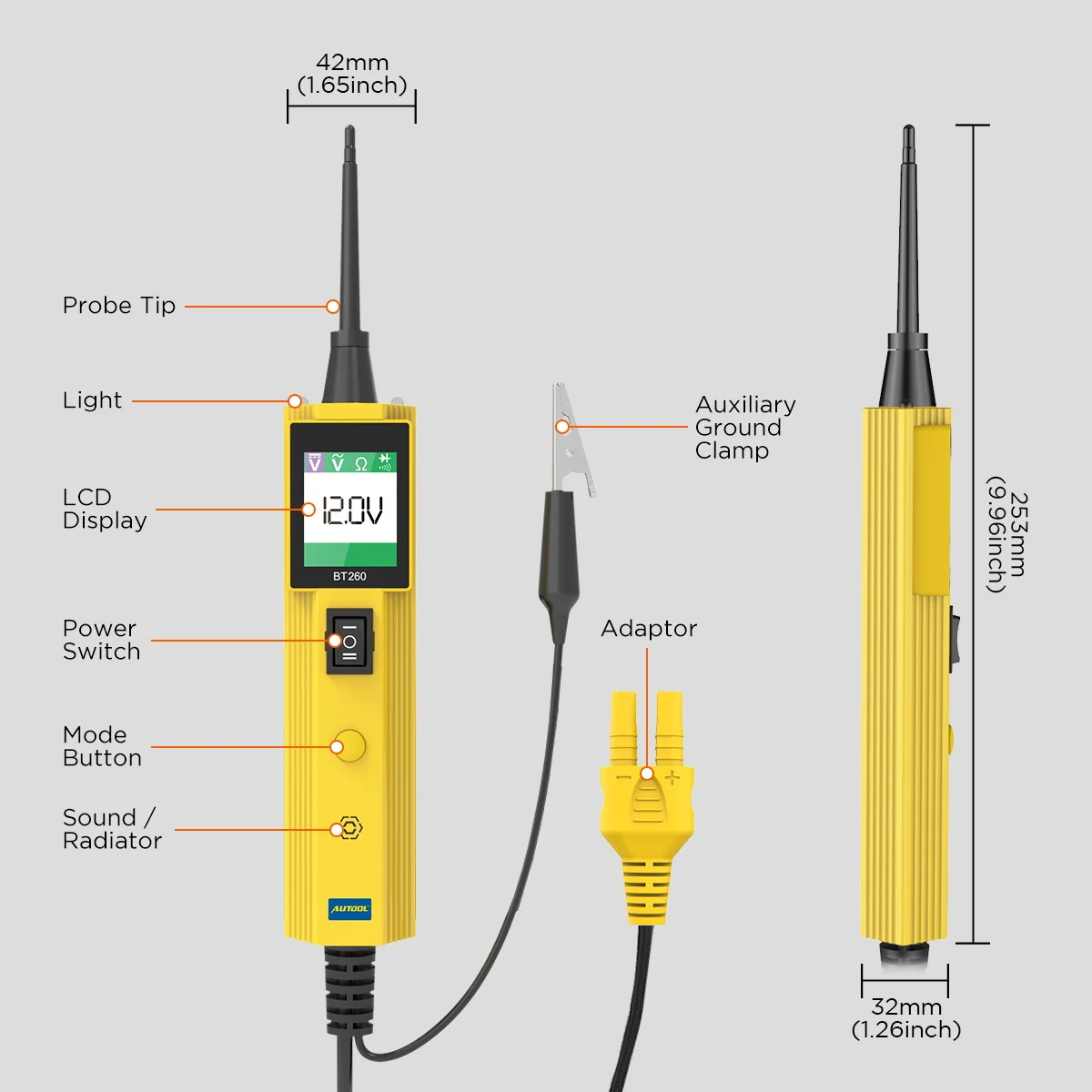

1)Display: TFT color display (160 x 128 dpi) 2) Operating Temperature: 0 to 60°C (32 to 140 F°) 3) Storage Temperature: -40 to 70°C (-40 to 185 F°) 4) External Power: 12.0 or 24.0 V power provided via vehicle battery 5) Dimensions: 126 mm (4.96”)x46.5 mm (1.83”)x35 mm (1.38”) L*W*H 6) NW: 0.105kg (0.23lb), GW: 0.726 kg(1.6lb)
1x Unit 1x User’s Manual. 1x Battery clamps adaptor. 1x Battery clamps 1x Probe tip 1x 10m( 393 inch). extension cable.
